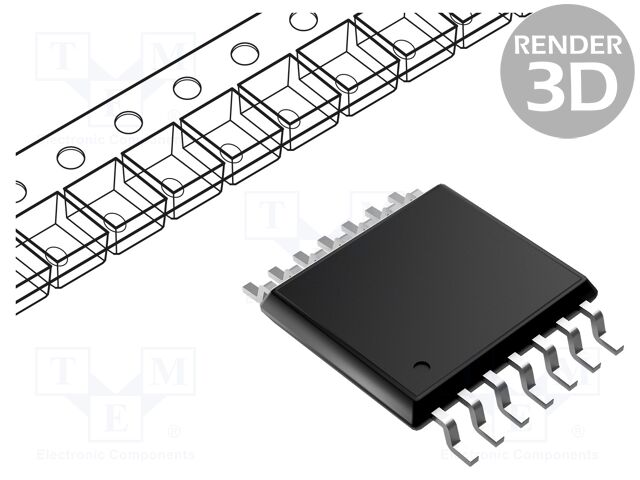

SN74HC00PWR
Texas Instruments
IC: digital; NAND; Ch: 4; IN: 2; SMD; TSSOP14; 2÷6VDC; -40÷85°C; HC
ACTIVE
RoHS: ROHS3 Compliant
Digi-Reel®
Bester Preis ab
0,13 EUR
| Distributor | SKU | Bestand | Min. | Verpackung | Lieferzeit | 1 | 10 | 100 | 1.000 | 10.000 | Stand | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TME | SN74HC00PWR | 54 | 1 | RL1 | – | 0,34 | 0,23 | 0,18 | 0,15 | 0,13 | 3h | Zum Angebot → |
| Digi-Key | 296-8203-2-ND | 8.000 | 2000 | Tape & Reel (TR) | 63 Tage | – | – | – | – | 0,15 | 3h | Zum Angebot → |
| Mouser | 595-SN74HC00PWR | 5.593 | 1 | MouseReel | 63 Tage | 0,36 | 0,25 | 0,19 | 0,16 | 0,15* | 10d | Zum Angebot → |
| Vorgeschlagenes Ersatzteil bei Mouser: SN74HC00PW | ||||||||||||
| Digi-Key | 296-8203-1-ND | 8.283 | 1 | Cut Tape (CT) | 63 Tage | 0,36 | 0,25 | 0,19 | 0,16 | 0,16* | 3h | Zum Angebot → |
| Digi-Key | 296-8203-6-ND | 8.283 | 1 | Digi-Reel® | 63 Tage | 0,36 | 0,25 | 0,19 | 0,16 | 0,16* | 3h | Zum Angebot → |
Preise pro Stück in EUR, netto zzgl. USt. * Preis von niedrigerer Staffelmenge abgeleitet, keine exakte Staffel für diese Menge hinterlegt.
Technische Spezifikationen
- Logic Type
- NAND Gate
- Number of Circuits
- 4
- Number of Inputs
- 2
- Voltage - Supply
- 2V ~ 6V
- Current - Quiescent (Max)
- 2 µA
- Current - Output High, Low
- 5.2mA, 5.2mA
- Input Logic Level - Low
- 0.5V ~ 1.8V
- Input Logic Level - High
- 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL
- 15ns @ 6V, 50pF
- Operating Temperature
- -40°C ~ 85°C
- Mounting Type
- Surface Mount
- Supplier Device Package
- 14-TSSOP
- Package / Case
- 14-TSSOP (0.173", 4.40mm Width)
Technische Details
- Gehäuse
- Digi-Reel®
- Gewicht
- 0.089 g
- Ursprungsland
- Malaysia
- Datenblatt
- Öffnen →
Zoll- & Exportcodes
- TARIC
- 8542319000
- CNHTS
- 8542399000
- CAHTS
- 8542390000
- USHTS
- 8542390090
- JPHTS
- 8542390990
- MXHTS
- 8542399999
- ECCN
- EAR99
