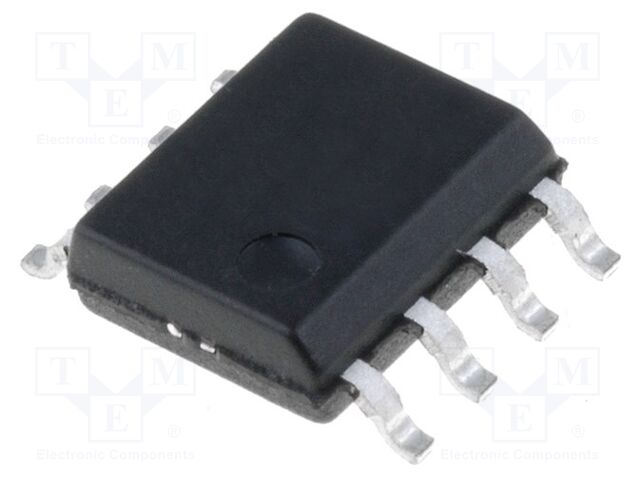

LM358ADRG4
Texas Instruments
IC: Operationsverstärker; 700kHz; Ch: 2; ±1,5÷16VDC,3÷32VDC; SO8
EOL
RoHS: ROHS3 Compliant
Cut Tape (CT)
Bester Preis ab
0,10 EUR
| Distributor | SKU | Bestand | Min. | Verpackung | Lieferzeit | 1 | 10 | 100 | 1.000 | 10.000 | Stand | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Digi-Key | 296-31667-2-ND | 0 | 5000 | Tape & Reel (TR) | 42 Tage | – | – | – | – | 0,10* | 21d | Zum Angebot → |
| Mouser | 595-LM358ADRG4 | – | 1 | MouseReel | – | – | – | – | – | – | 21d | Zum Angebot → |
| Digi-Key | 296-31667-1-ND | 0 | 0 | Cut Tape (CT) | 42 Tage | – | – | – | – | – | 21d | Zum Angebot → |
| TME | LM358AD | 0 | 1 | TB1 | – | – | – | – | – | – | 21d | Zum Angebot → |
Preise pro Stück in EUR, netto zzgl. USt. * Preis von niedrigerer Staffelmenge abgeleitet, keine exakte Staffel für diese Menge hinterlegt.
Technische Spezifikationen
- Amplifier Type
- Standard (General Purpose)
- Number of Circuits
- 2
- Slew Rate
- 0.3V/µs
- Gain Bandwidth Product
- 700 kHz
- Current - Input Bias
- 15 nA
- Voltage - Input Offset
- 2 mV
- Current - Supply
- 500µA (x2 Channels)
- Current - Output / Channel
- 40 mA
- Voltage - Supply Span (Min)
- 3 V
- Voltage - Supply Span (Max)
- 30 V
- Operating Temperature
- 0°C ~ 70°C (TA)
- Mounting Type
- Surface Mount
- Package / Case
- 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package
- 8-SOIC
